Model VIP Vortab® Insertion Panel Flow Conditioner

VIP Vortab® Insertion Panel Flow Conditioner

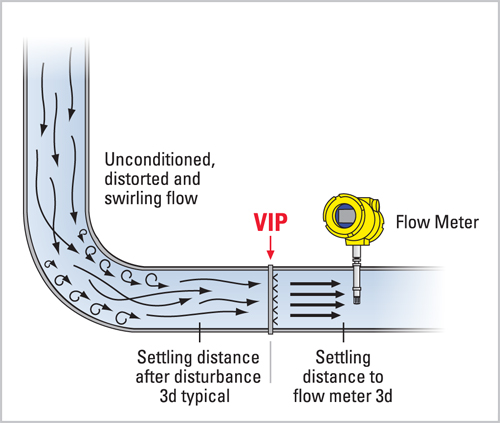

VIP settling distance


Download literature
for this product

Significantly Reduces Flow Meter Straight-Run Requirements

Model VIP Summary:

The VIP (Vortab Insertion Panel) flow conditioner completely neutralizes flow profile irregularities caused by elbows, valves, blowers, compressors, and other flow disturbances that commonly occur in piping and duct runs and cause flow meter inaccuracies. The VIP provides a swirl-free, symmetric and repeatable flow profile that flow meters require for accurate measurement.

Model VIP flow conditioners marry the scientifically proven superior performance of Vortab tab-type flow conditioning technology with the installation ease and cost savings of an insertion panel design.

VIP is particularly effective with wide-turndown and/or low flow sensitive flow meter technologies (e.g. thermal dispersion) to provide a highly repeatable flow profile during laminar, transitional and turbulent flow conditions.

Applications:

  Piping with inadequate straight-runs
  Perfect for Applications requiring low pressure drop
  Processes that require repeatable symmetric and swirl free velocity flow profiles
  FCI Endorsed for Use with Thermal-Dispersion Gas Mass Flow Meters
  For Pipe Sizes ≥ 2” [≥ 50 mm]


Specifications:

Process Media:
Gases

Materials of Construction:
316L stainless steel; contact Vortab for other materials

Pipe Size:
2″ to 40″ [50 mm to 999.9 mm] standard; larger sizes available – contact Vortab

Installation:
Weld in place or flange mounted; ANSI or DIN

Shipping Weight:
(approximate) 2 lbs per inch diameter [0,9 kg per 25 mm]


Ordering VIP is easy – determine your pipe I.D. and whether you will weld in place or flange mount. If you are ordering a flange mount VIP, also provide flange type and rating.

* For more information, download Transitional Flow Effects on Flow Meter Measuring Accuracy from the
   Vortab website: www.vortab.com/SalesLiterature.htm
